Reliable Analytical Lab Consumables Backed by Shimadzu’s Expertise

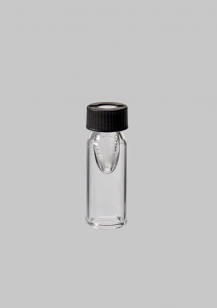

Our small-volume vials with their unique shape are made of the same materials and receive the same cleaning treatment as the 1.5 mL vials. They suppress adsorption more than other small-volume inserts by limiting the contact surface between the sample and the container. In addition, the bottom surface of the vial is hollowed out in order to increase thermal conductivity. Residual volume: Approx. 10 μL When using it, adjust the needle stroke parameter to be 15 mm higher than for the 1.5 mL vials. For example; Shimadzu SIL-40 series: 32 mm or less

round shallow well, U-bottom, non-sterile  ***Avoid sunlight and store at room temperature.

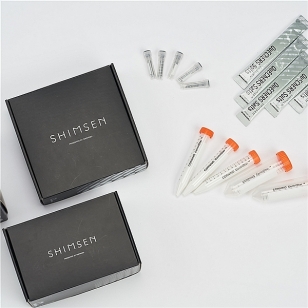

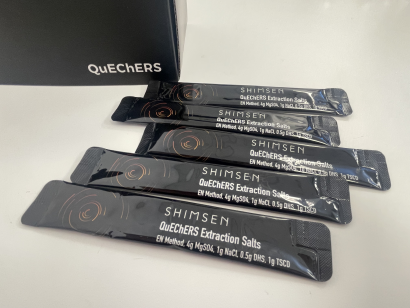

QuEChERS, which stands for Quick, Easy, Cheap, Effective, Rugged, and Safe, is a popular sample preparation technique used in analytical chemistry, particularly in the analysis of pesticides, herbicides, and other contaminants in food and environmental samples. This method was developed to streamline the sample preparation process, making it quicker, more cost-effective, and safer while maintaining high analytical accuracy and sensitivity.     Products for AOAC 2007.01-Method Part Number Description Pack Size 380-00151 Extraction Salts with 50mL Centrifuge Tube, 6g MgSO4, 1.5g NaOAc 50/pack 380-00152 Extraction Salts Packets only, 6g MgSO4, 1.5g NaOAc 50/pack 380-00990-05 15 mL, 400 mg PSA, 1200 mg MgSO4 50/pack 380-00990-07 15 mL, 400 mg PSA, 400 mg C18, 1200 mg MgSO4 50/pack 380-00990-08 15 mL, 400 mg PSA, 400 mg C18, 400 mg GCB, 1200 mg MgSO4 50/pack 380-00990-17 2 mL, 50 mg PSA, 150 mg MgSO4 100/pack 380-00990-18 2 mL, 50 mg PSA, 50 mg C18, 150 mg MgSO4 100/pack 380-00990-19 2 mL, 50 mg PSA, 50 mg GCB, 150 mg MgSO4 100/pack 380-00990-20 2 mL, 50 mg PSA, 50 mg C18, 50 mg GCB, 150 mg MgSO4 100/pack Products for EN 15662-Method Part Number Description Pack Size 380-00148 Extraction Salts with 50mL Centrifuge Tube, 4g MgSO4, 1g NaCl, 0.5g DHS, 1g TSCD 50/pack 380-00149 Extraction Salts Packets only, 4g MgSO4, 1g NaCl, 0.5g DHS, 1g TSCD 50/pack 380-00990-01 15 mL, 150 mg PSA, 15 mg GCB, 900 mg MgSO4 50/pack 380-00990-02 15 mL, 150 mg PSA, 900 mg MgSO4 50/pack 380-00990-03 15 mL, 150 mg PSA, 15 mg GCB, 885 mg MgSO4 50/pack 380-00990-04 15 mL, 150 mg PSA, 45 mg GCB, 900 MgSO4 50/pack 380-00990-06 15 mL, 150 mg PSA, 150 mg C18, 900 mg MgSO4 50/pack 380-00990-21 2 mL, 25 mg PSA, 150 mg MgSO4 100/pack 380-00990-22 2 mL, 25 mg PSA, 25 mg C18, 150 mg MgSO4 100/pack 380-00990-23 2 mL, 25 mg PSA, 2.5 mg GCB, 150 mg MgSO4 100/pack 380-00990-24 2 mL, 25 mg PSA, 7.5 mg GCB, 150 mg MgSO4 100/pack MgSO4: Magnesium sulfate, NaOAc: Sodium acetate, NaCl: Sodium chloride, TSCD: Trisodium citrate dihydrate, DHS: Disodium hydrogen citrate sesquihydrate

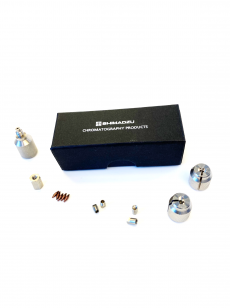

For connecting 0.1 ~ 0.25 mm I.D. column and 0.32 mm I.D. column. SMI (Smart Micro Inert) Union is option for connecting capillary columns that features low leakage, inertness, low dead volume and low heat capacity. This kit includes 5 ferrules, 2 pairs of unions, 1 connecting nut, and 1 pair of connecting tools Replacement ferrule 227-35025-02 Replacement union body 227-35026-01 Connecting tool, nut and union are reusable.

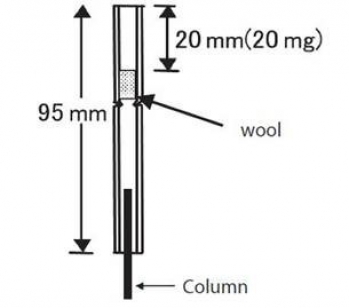

This is a special liner for aqueous solutions, system suitability requirements were satisfied, and good repeatability was obtained. When using a special liner for aqueous solutions repeatedly, it is recommended that it is replaced after 50 to 100 injections. Typical applications to analyze aqueous solutions: G333: Alcohol Determination of Sanitizer Gel in accordance with USP G315: Analysis of Ethanol in alcoholic beverages Using Nexis GC-2030 Liner volume is approx. 863uL

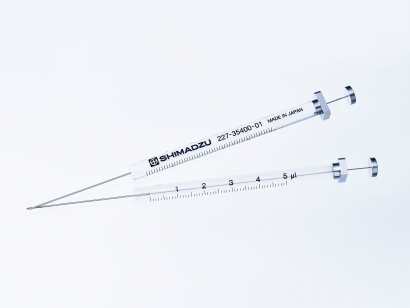

Fixed needle syringe with super flexible titanium alloy plunger. They are resistant to bending and sliding friction for extended lifetime, even with water soluble samples. Plunger and barrel are machined for an exact fit, so they are not interchangeable with another syringe if either part is damaged. Syringe Volume Min. Sample  Volume Needle Length (mm) Needle Gauge Needle OD (mm) Needle ID (mm) Needle tip P/N 5 μL 0.1 μL 43 23 0.64 0.15 Cone 227-35401-01 10 μL 0.2 μL 43 23 0.64 0.15 Cone 227-35400-01

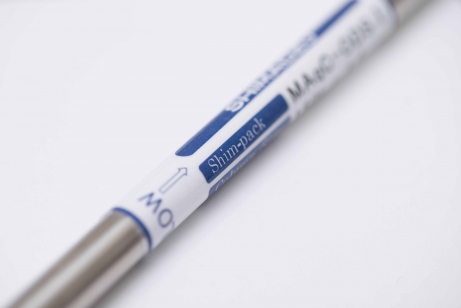

Shim-pack MAqC-ODS I reversed-phase columns are packed with a silica gel containing metal and bonded octadecylsilyl group. In addition to the hydrophobic characteristics of the ODS, the metal content also provides cation-exchange effects. This increases the retention of basic compounds. Therefore, this allows use with only a buffer solution as the mobile phase for analyses that previously required using an ion pair reagent and enables using gradient elution. These characteristics are especially beneficial for analyzing water soluble vitamins and pharmaceuticals that contain a large amount of basic compounds. * To use this column efficiently: 1) To increase the retention of basic compounds, please use a buffer solution within the pH 2 to 4 range. 2) In the case of a basic substance tailing, it may be possible to improve the peak shape by increasing the salt concentration of a buffer solution. 3) The elution of basic compounds is faster by increasing the salt concentration, and it is possible to adjust retention by salt concentration.

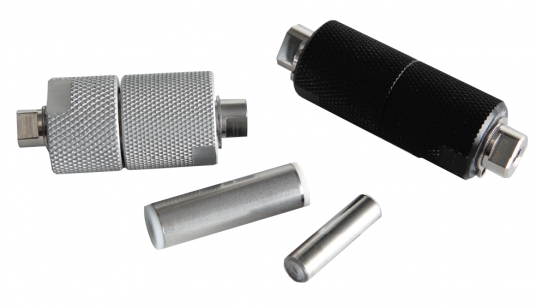

Includes two cartridges and one holder *1 Note that a delay volume equivalent to the internal volume of the product occurs if the product is installed downstream of the gradient mixer or the confluence of two pumps. * The product service life differs according to analysis conditions, such as the mobile phase used. * Do not use the product when using a mass spectrometer as the detector, as the product may cause bleed noise. * In analysis using an ion-pairing reagent, the ion-pairing reagent may be retained in the product, influencing the retention time and peak shape. * Before connecting the analytical column, be sure to thoroughly clean the flow path with mobile phase (close to the final concentration for gradient analysis). * Note that some impurities may not be removed. * When performing high-pressure analysis exceeding 35 MPa with a UHPLC system, connect the gradient mixer to the Ghost Trap DS-HP with pipe for UHPLC (e.g. 228-53137-97).
